Fully-auto Vertical L Bar Sealer & Shrink Tunnel

This fully-auto Vertical L-Bar Sealer & Shrink Tunnel integrates an L-shaped sealing and cutting main unit with a small, temperature-controlled shrink tunnel, primarily designed for small to medium-sized, neat gift boxes and multi-item packaging, suitable for standardized production lines with small to medium capacity. The equipment relies on automatic feeding, centered film wrapping, L-shaped sealing and cutting, and hot air shrinking for continuous automated operation, creating a high-end packaging effect with clean corners and a clear, transparent film, comprehensively isolating dust, moisture, and surface scratches. The fully automated operation significantly reduces labor costs for manual packaging, standardizes the sealing and cutting process, and avoids problems such as misaligned sealing and film accumulation caused by manual operation.

Inquiry Us Add to Cart
Previous: Fully-auto Rear Blade Side Sealer & Shrink Tunnel
Next: Fully-auto Economical Vertical L Bar Sealer & Shrink Tunnel
Product Details Technical Specifications Feedback

Key Features:

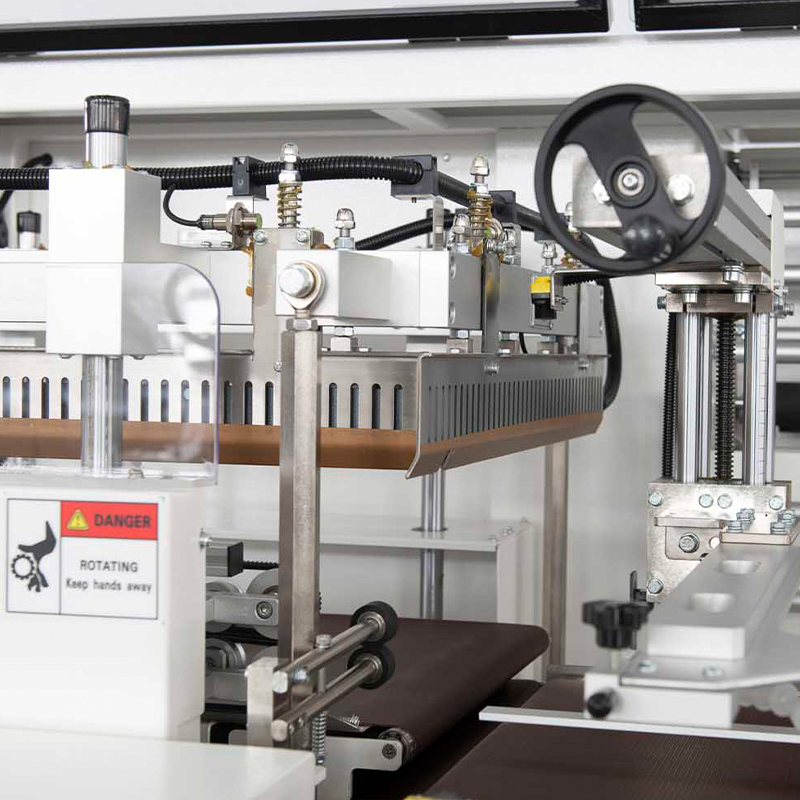

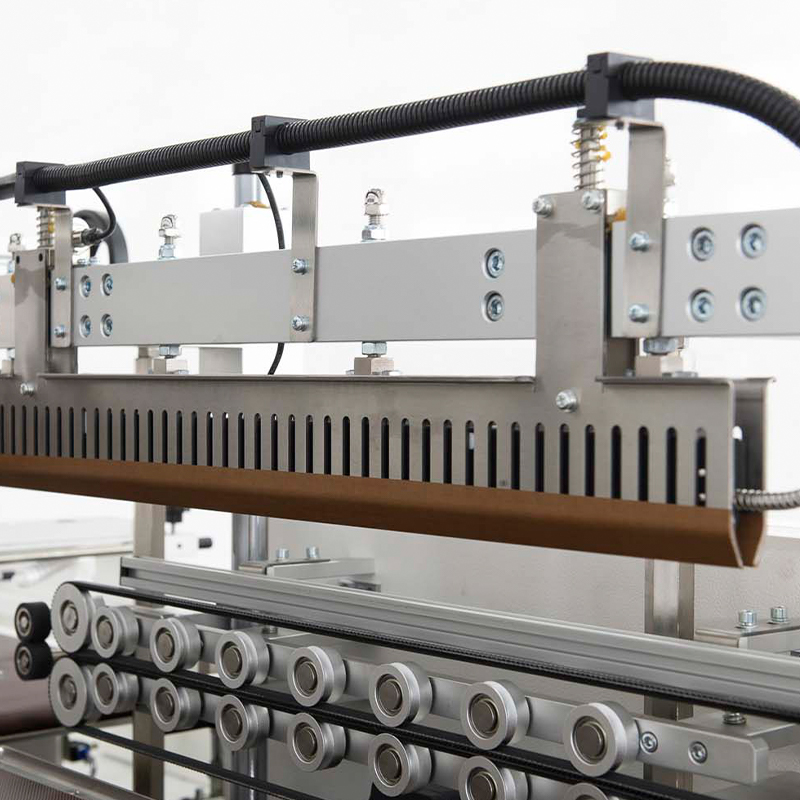

Cylinder-Stable Sealing and Cutting System: The entire machine uses Taiwan Airtac cylinders to drive the sealing blades, ensuring smooth and reliable operation. The cutting pressure is uniform and constant, unaffected by external air pressure fluctuations, resulting in a durable, strong, and stable seal.

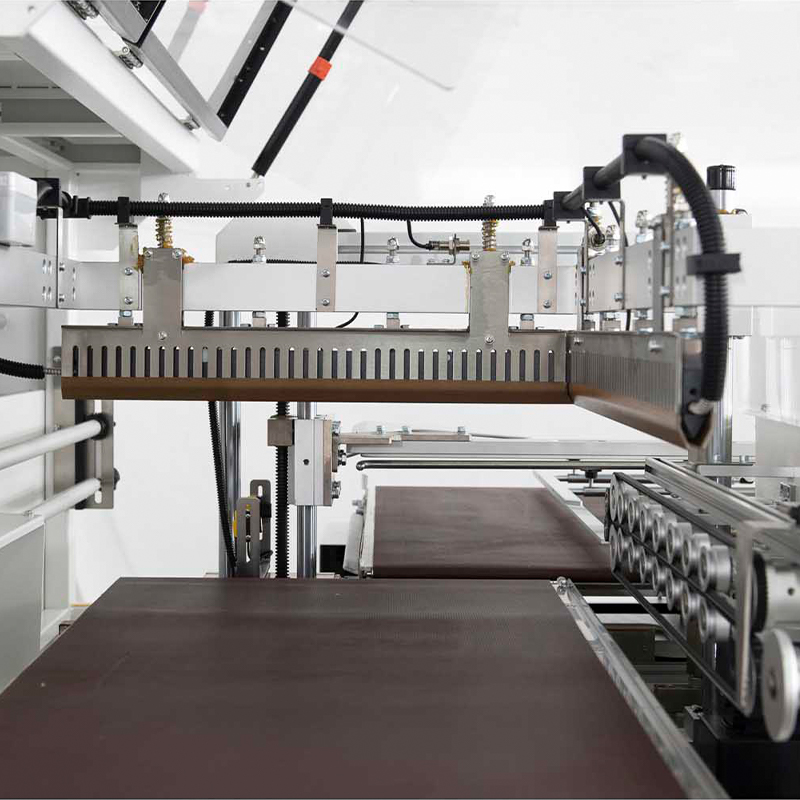

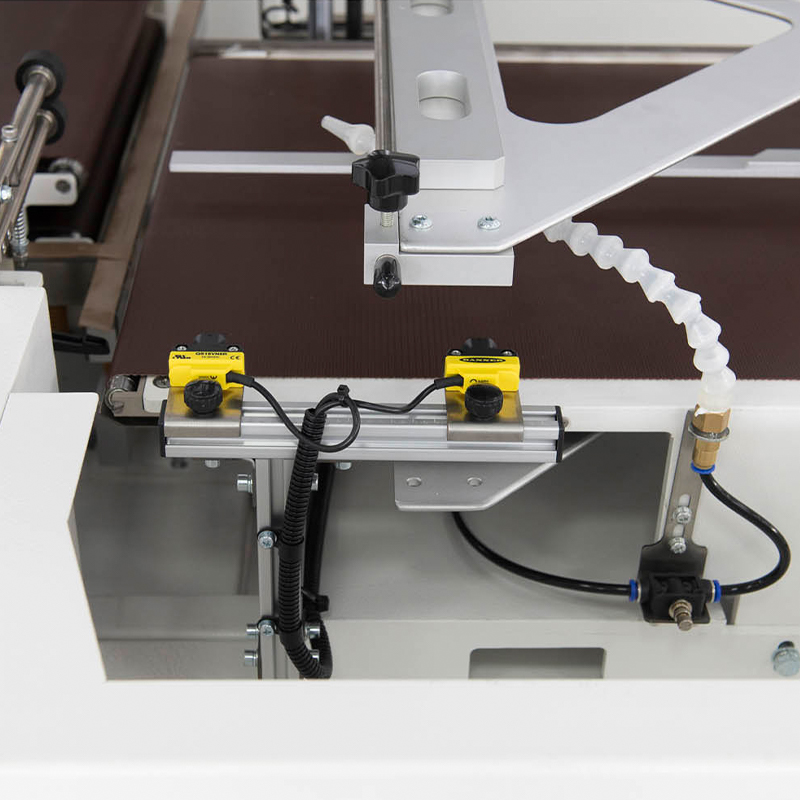

Centered Sealing with Minimal Overlap Technology: The sealing and cutting blades are centrally positioned, minimizing the overlap at the four corners of the finished film. This results in a refined and minimalist packaging appearance. Combined with an anti-miscutting device, the machine automatically stops when there are no workpieces, reducing film waste. One-button dual-speed switching function: Built-in two sets of operating parameters for individual product packaging and multi-item combination packaging. One-button speed switching via touchscreen allows for mixed-product production without manual equipment adjustments.

Constant-temperature precision shrink tunnel: Independent temperature control module ensures precise temperature control and stable, uniform hot air circulation. Compatible with POF shrink film, the film adheres tightly to the product contours, providing dustproof, moisture-proof, and scratch-proof protection.

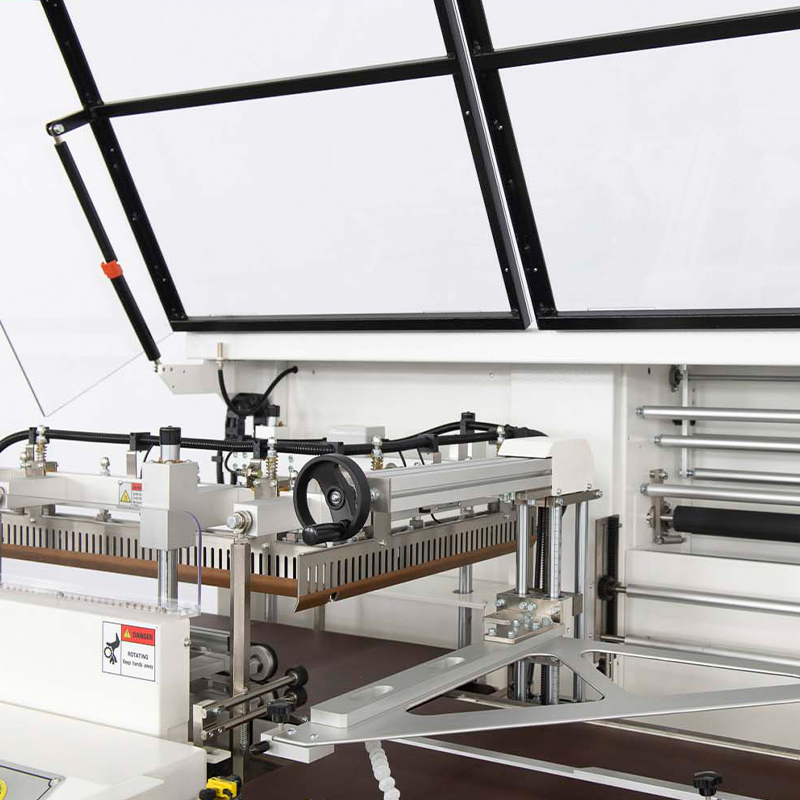

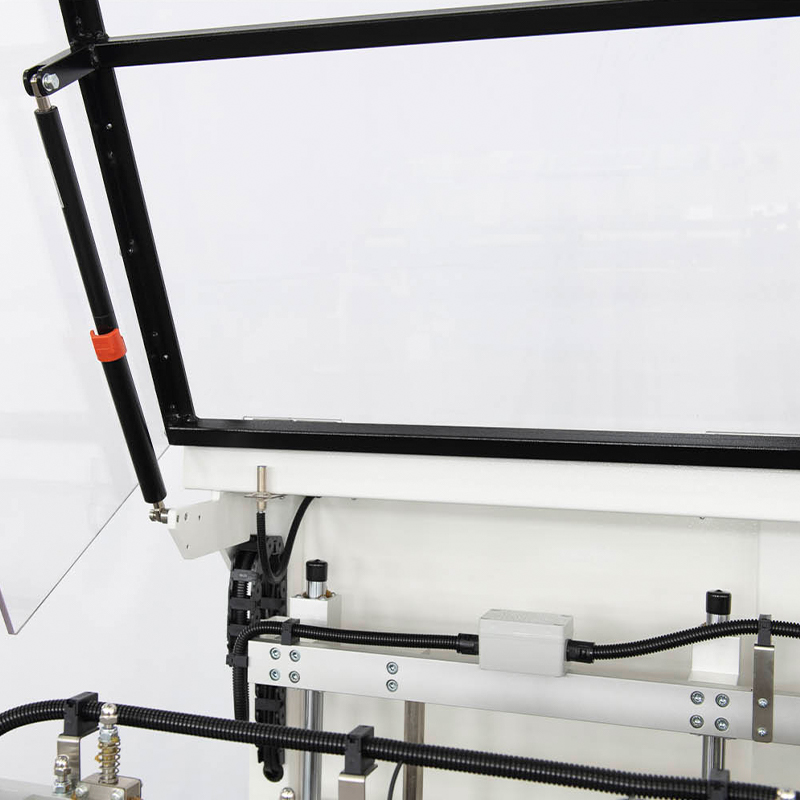

Safe, stable, and intelligent electronic control: Equipped with a Siemens PLC touch control system, featuring overload protection, fault alarms, and a fully enclosed protective shell. Multiple safety features reduce operational risks and extend the machine's lifespan.

Applications: Widely used for automated wrapping of food gift boxes, cosmetic sets, books and albums, stationery sets, 3C electronic products, daily necessities, small hardware accessories, and cultural and creative gifts. Particularly suitable for regular square and rectangular boxed products, meeting the needs of e-commerce bulk packaging, gift factories, printing plants, and small electronics processing plants for continuous packaging of single items or combination sets.

Parameter GH-450LV (Cylinder Type) GH-450LVS (Servo Type) GH-600LV (Cylinder Type) GH-600LVS (Servo Type) GH-750LV (Cylinder Type) GH-750LVS (Servo Type) SF-6040LG
Model GH-450LV GH-450LVS GH-600LV GH-600LVS GH-750LV GH-750LVS SF-6040LG
Power 3.2kw 4kw 3.8kw 5kw 4.3kw 5.6kw 22kw
Power Supply AC 220V 1/3PH 50/60HZ AC 220V 1/3PH 50/60HZ AC 220V 1/3PH 50/60HZ AC 220V 1/3PH 50/60HZ AC 220V 1/3PH 50/60HZ AC 220V 1/3PH 50/60HZ AC 380V 3PH 50/60HZ
Packing Size L × W × H L+H≤400mm L+H≤400mm L+H≤600mm L+H≤600mm L+H≤850mm L+H≤850mm Chamber Size
W+H≤300mm H≤100mm W+H≤300mm H≤120mm W+H≤500mm H≤170mm W+H≤500mm H≤210mm W+H≤650mm H≤250mm W+H≤650mm H≤280mm 1800 × 600 × 400mm
Max Outer Dia. of Film Roll 350mm 350mm 350mm 350mm 350mm 350mm /
L-bar Blade Size L450 × W350mm L450 × W350mm L650 × W550mm L650 × W550mm L900 × W700mm L900 × W700mm /
Packing Speed 0~35m/min. 0~35m/min. 0~35m/min. 0~35m/min. 0~30m/min. 0~30m/min. 0~20m/min.
Working Table Height 825 ± 25mm 825 ± 25mm 825 ± 25mm 825 ± 25mm 825 ± 25mm 825 ± 25mm 825 ± 25mm
External Air Source 5~8 bar 5~8 bar 5~8 bar None 5~8 bar None /
Shrink Film POF/PE POF/PE POF/PE POF/PE POF/PE POF/PE POF
Machine Size L × W × H 1580 × 1386 × 1300mm 1580 × 1386 × 1300mm 2100 × 1650 × 1350mm 2100 × 1650 × 1350mm 2450 × 1680 × 1380mm 2450 × 1680 × 1380mm 2300 × 1085 × 1380mm
Crate Size L × W × H 1680 × 1486 × 1450mm 1680 × 1486 × 1450mm 2200 × 1750 × 1500mm 2200 × 1750 × 1500mm 2550 × 1780 × 1530mm 2550 × 1780 × 1530mm 2400 × 1185 × 1510mm
Gross / Net Weight 825/700kgs 825/700kgs 980/900kgs 980/900kgs 1050/950kgs 1050/950kgs 650/600kgs
