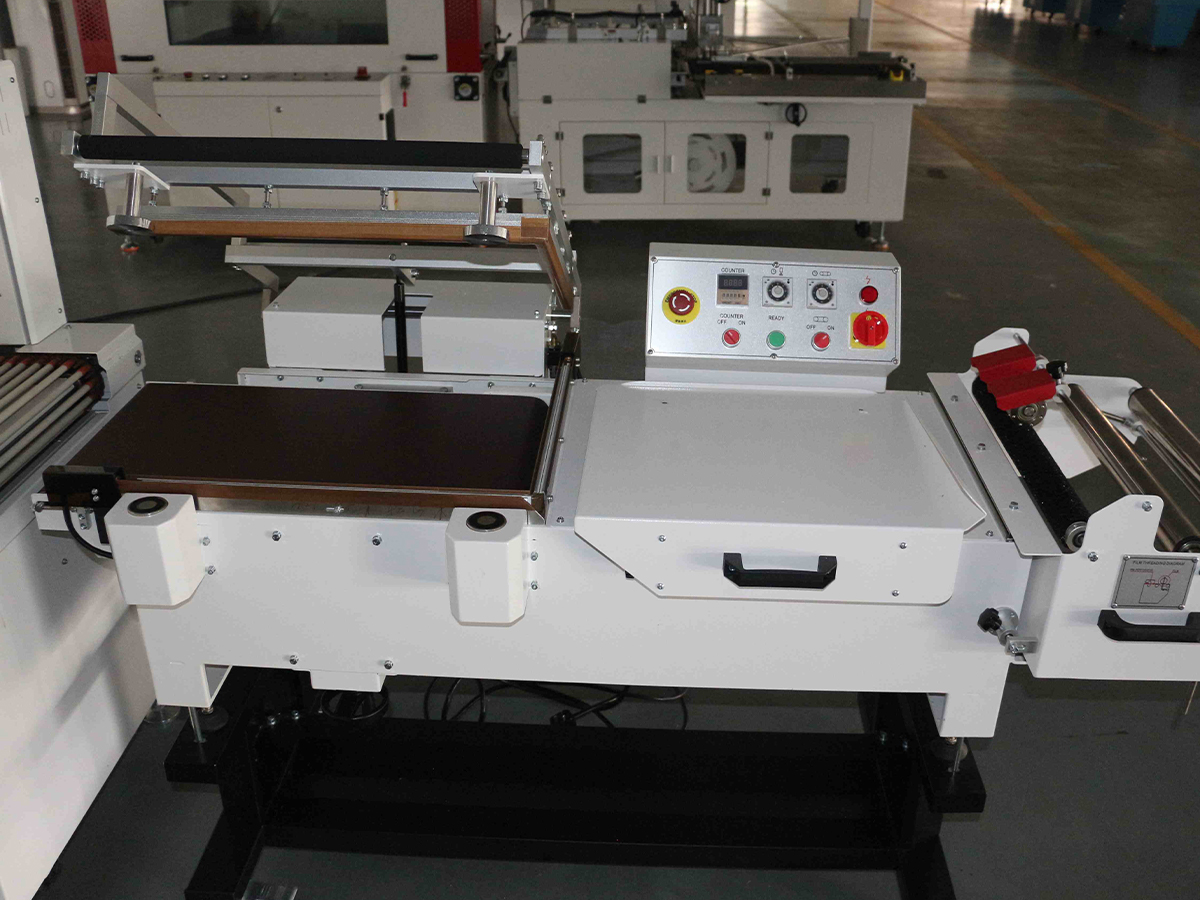

Semi-auto L Bar Sealer and Shrink Tunnel

This semi-auto L-bar Sealer and Shrink Tunnel combines an L-shaped sealing and cutting machine with a heat shrink tunnel, offering a cost-effective and economical packaging solution suitable for small to medium-capacity production. After manual material feeding, the machine automatically completes the sealing, cutting, conveying, and heat shrinking processes, creating neat and aesthetically pleasing packaging while providing reliable protection for goods. The machine is simple and easy to operate, effectively reducing manual labor intensity and consistently delivering stable packaging quality.

Product Details Technical Specifications Feedback

Key Features:

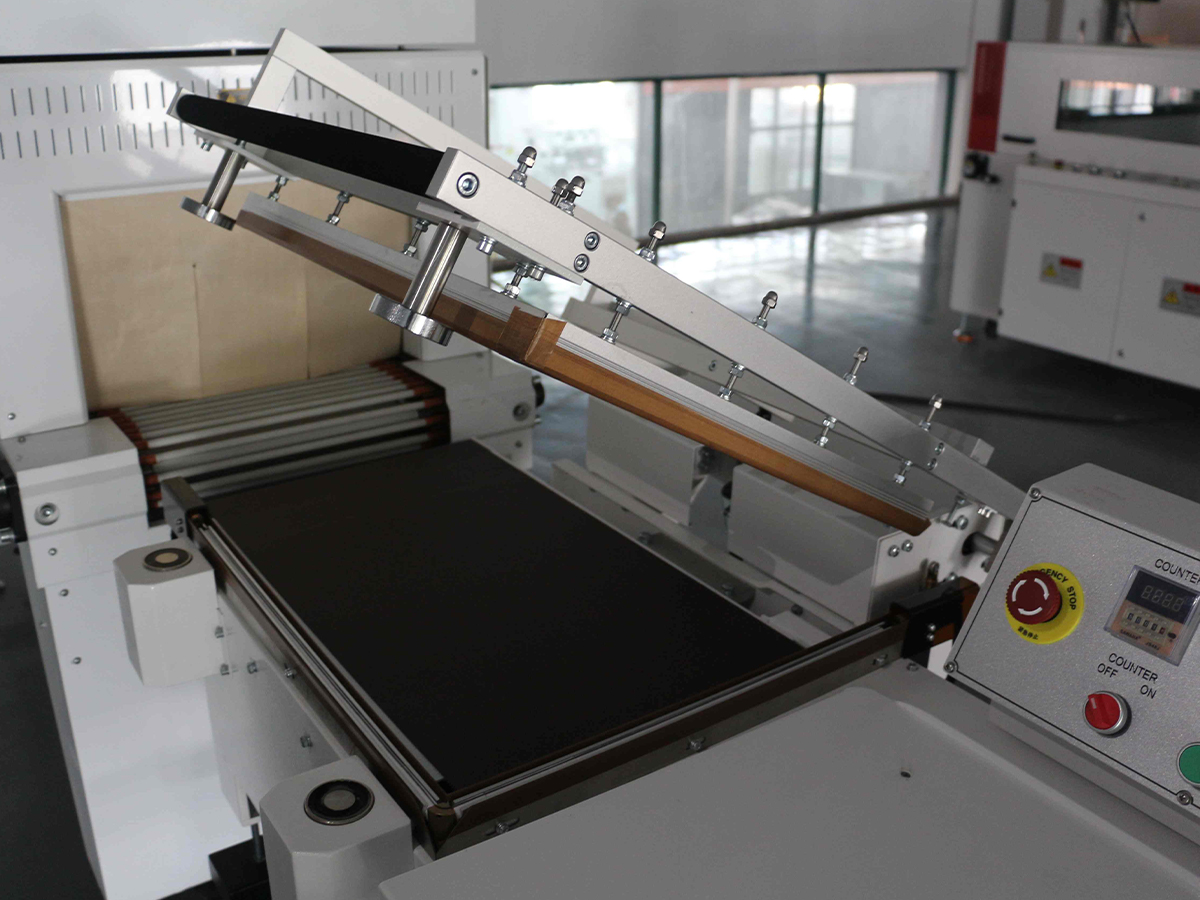

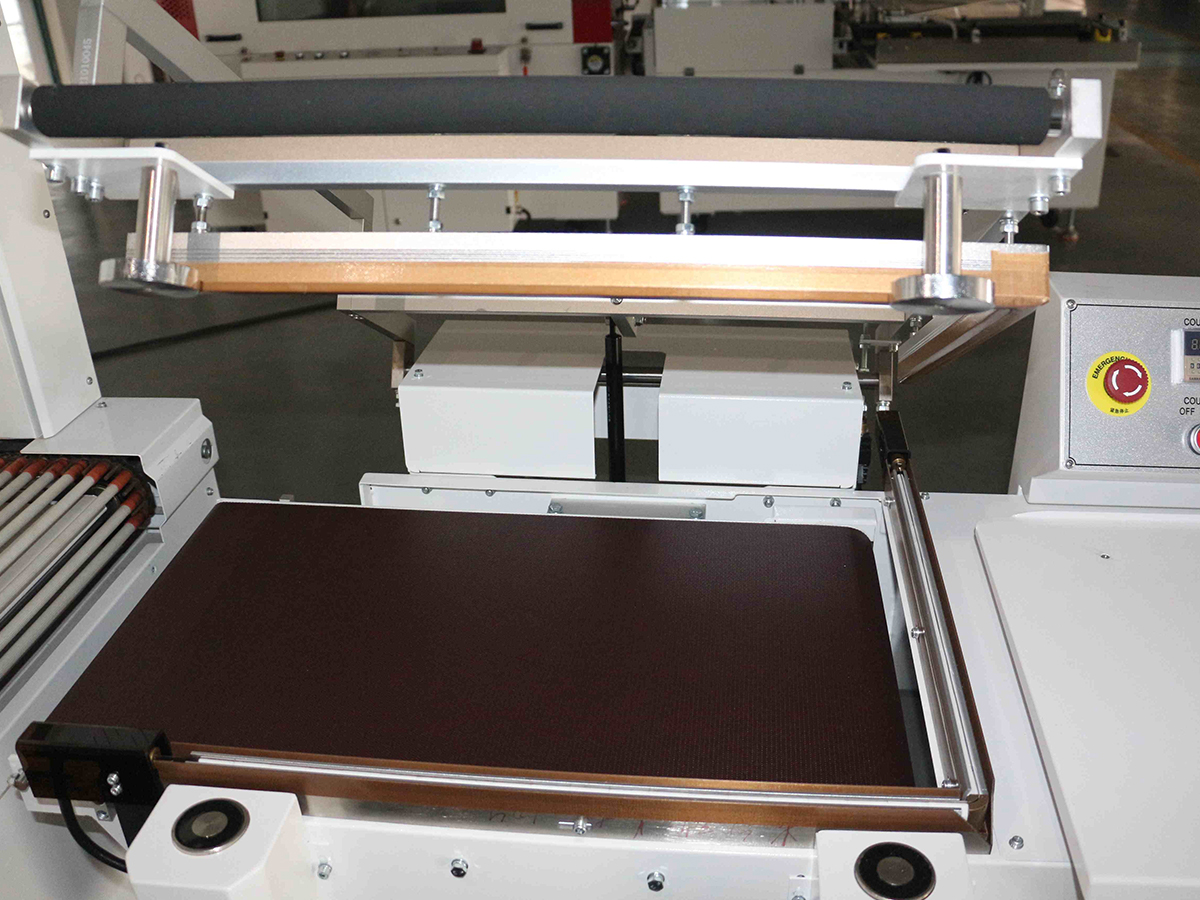

L-shaped Sealing and Cutting Integration: Utilizing a classic L-shaped sealing and cutting structure, the machine automatically feeds the product into the shrink oven after sealing and cutting, completing the heat shrinking process seamlessly.

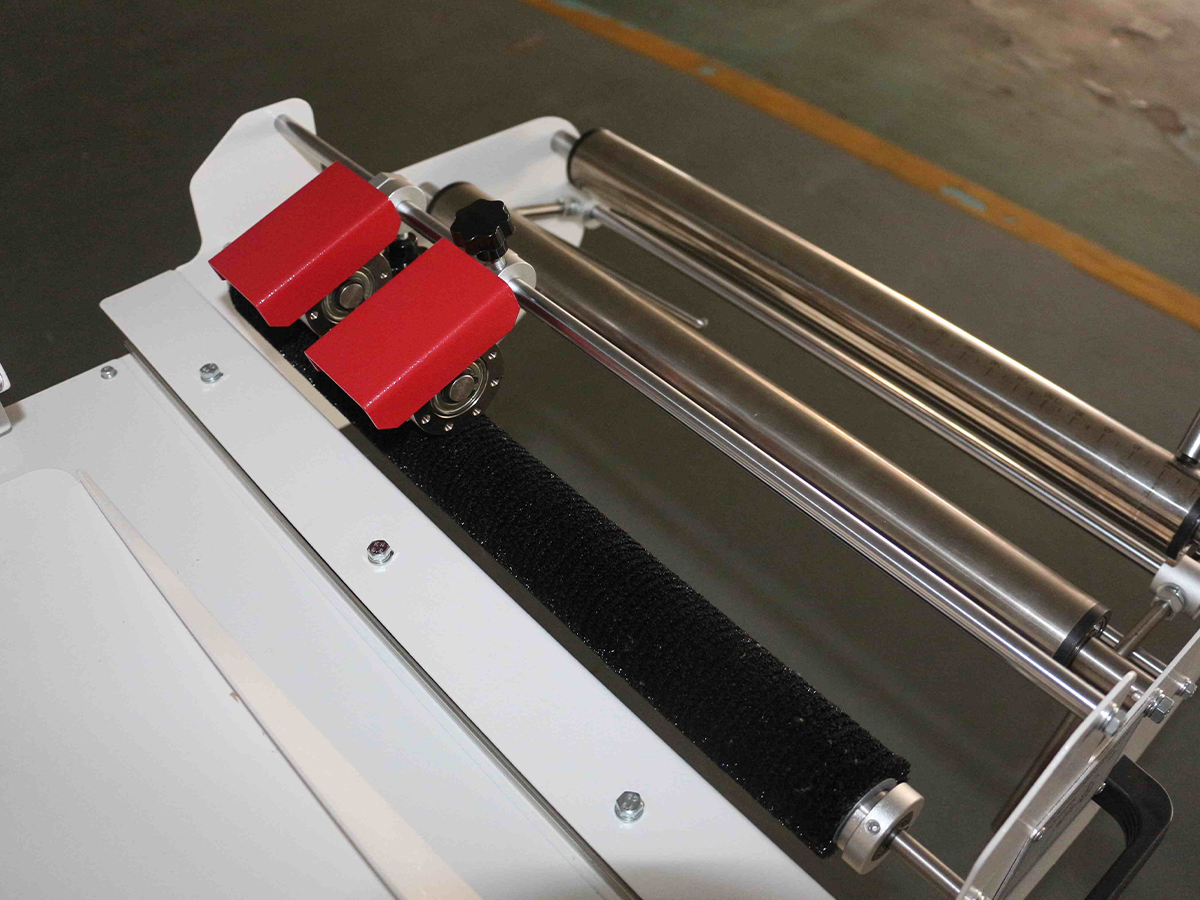

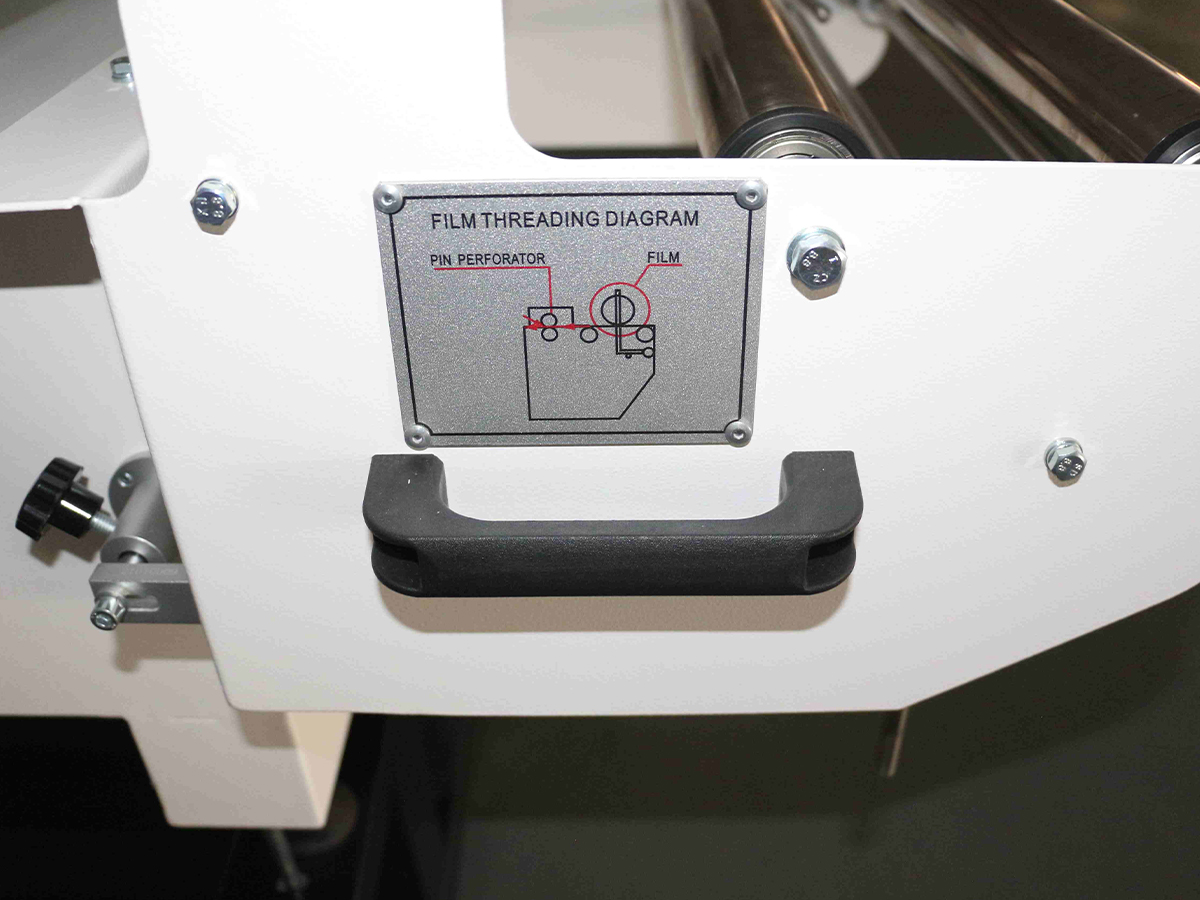

Multi-functional Sliding Film Carrier: Equipped with an adjustable sliding bracket, it can accommodate various sizes of heat shrink film. Combined with the perforation device, it operates smoothly to meet different packaging needs.

Convenient Height Adjustment: Featuring a handwheel adjustment mechanism, the conveyor belt height can be flexibly adjusted, easily calibrating the sealing and cutting position to ensure a centered and neat seal.

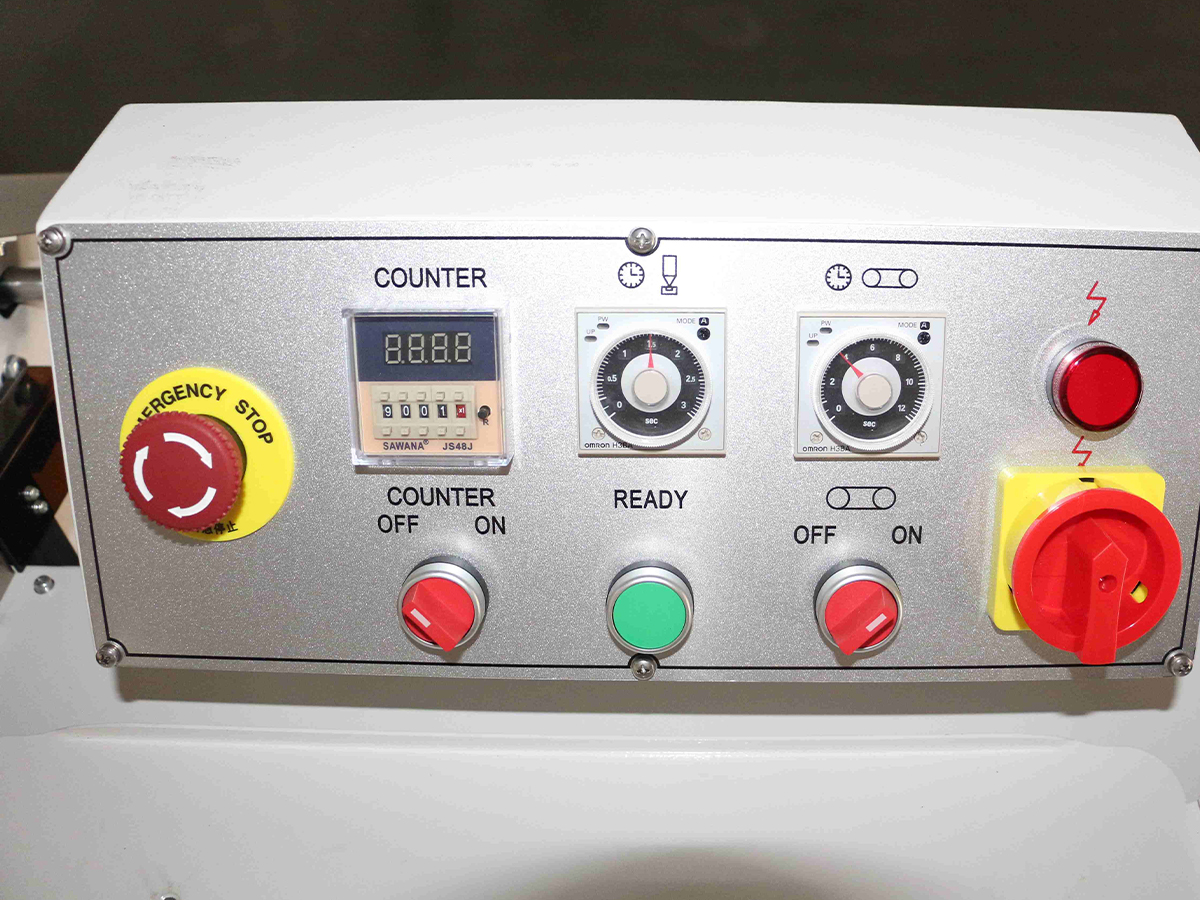

Precise Sealing and Cutting Control: Utilizing a time relay to control sealing and cutting time, parameters can be finely adjusted, resulting in stable and uniform sealing and cutting effects.

Rich Optional Functions: A pressing device can be added as needed, and imported horizontal and vertical detection sensors can be selected for precise sealing and cutting even for thin and small items.

Safe Anti-Mis-Cutting Design: The cutter has an automatic protection function, effectively avoiding the risk of accidental cutting and improving operational safety.

Durable Sealing and Cutting Blades: The sealing blade is made of alloy steel and coated with DuPont Teflon non-stick coating, which is high-temperature resistant, does not easily stick to the film, and will not cause problems such as edge cracking, charring, or smoke during operation, making it environmentally friendly and pollution-free.

High-Quality Core Components: The machine uses multiple internationally renowned brand components, ensuring reliable performance of the temperature control, transmission, and electrical systems, stable equipment operation, and a long service life.

Temperature-Controlled Shrink Tunnel: The shrink oven has precise temperature control, allowing the heat shrink film to adhere tightly to the product, providing dustproof, moisture-proof, and wear-resistant protection.

Applications: Widely used in packaging food, daily chemical products, cosmetics, small electronic products, gift boxes, general merchandise, and small industrial parts. It is especially suitable for bulk packaging of various regular boxed, bottled, and small combination goods, and is a cost-effective packaging choice for stores, small processing plants, and small and medium-sized production lines.

Parameter Model SF-30LG Model SF-5030
Power 2.8 kw 12 kw
Power Supply AC 220/380V 1/3PH 50/60HZ AC 220/380V 3PH 50/60HZ
L-bar Blade Size 700×600mm /
Packing Size L+H ≤ 650mm, W+H ≤ 550mm, H ≤ 200mm Chamber Size (L×W×H):
1500×500×350mm
Packing Speed 0–15m/min. 0–15m/min.
Working Table Height 825 ± 25mm 825 ± 25mm
Shrink Film POF POF
Machine Size (L×W×H) 2030 × 1017 × 1100mm 1600 × 780 × 1485mm
Export Crate Size (L×W×H) 2130 × 1117 × 1250mm 1700 × 880 × 1635mm
Gross / Net Weight 360/300kgs 350/315kgs
