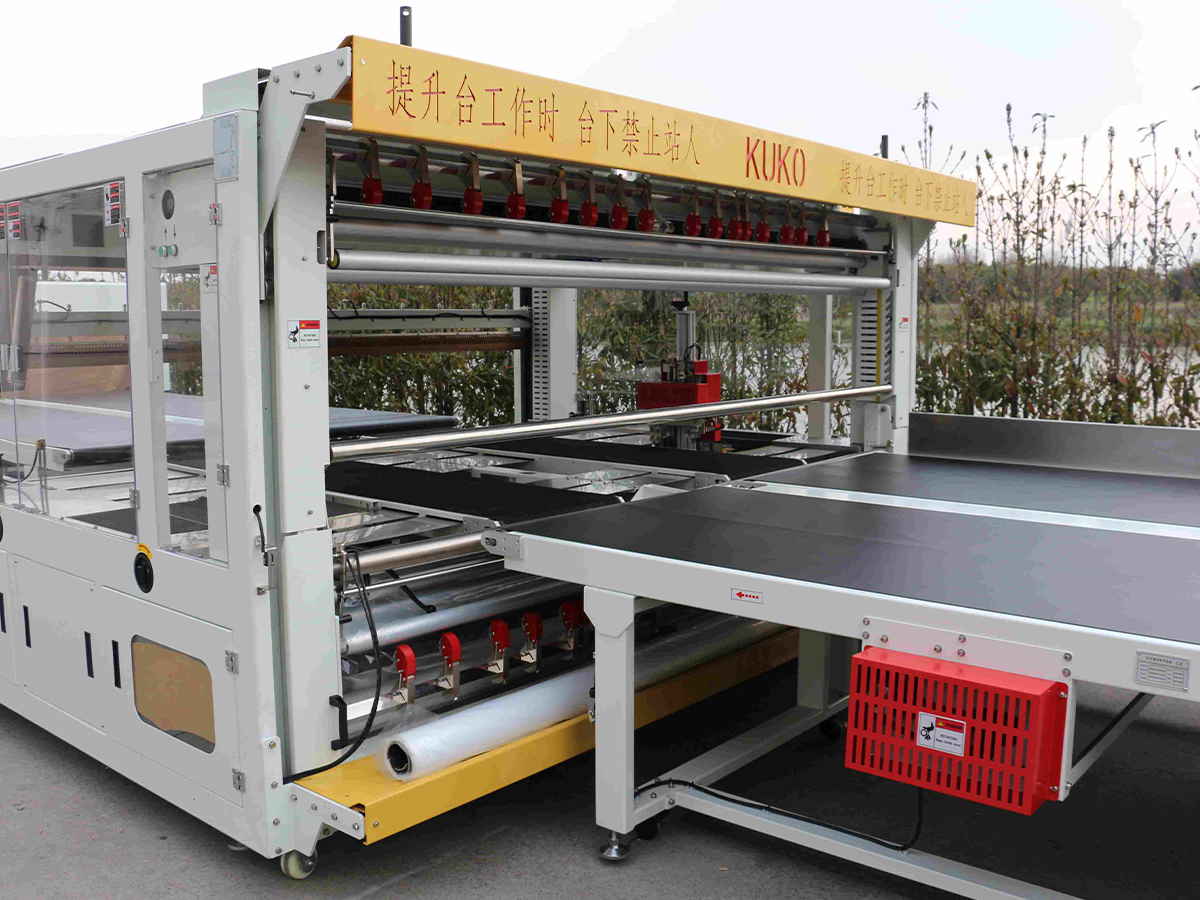

Fully-auto Double Side Sealer and Shrink Tunnel

This fully-auto Double Side Sealer and Shrink Tunnel integrates a double-sided sealing and cutting mechanism with a heat-shrink tunnel, making it an all-in-one packaging device suitable for multi-category production. The equipment automates the entire process from feeding, sealing, and heat shrinking, creating neat and aesthetically pleasing packaging while providing reliable protection for products. The fully automatic operation reduces labor costs and maintains consistent packaging quality.

Product Details Technical Specifications Feedback

Key Features:
Fully Automatic Operation: The entire system achieves fully automated flow from feeding, film delivery, double-sided sealing and cutting, residual film cleaning, heat shrinking, to discharge. It is simple and easy to operate, highly efficient, and stable.

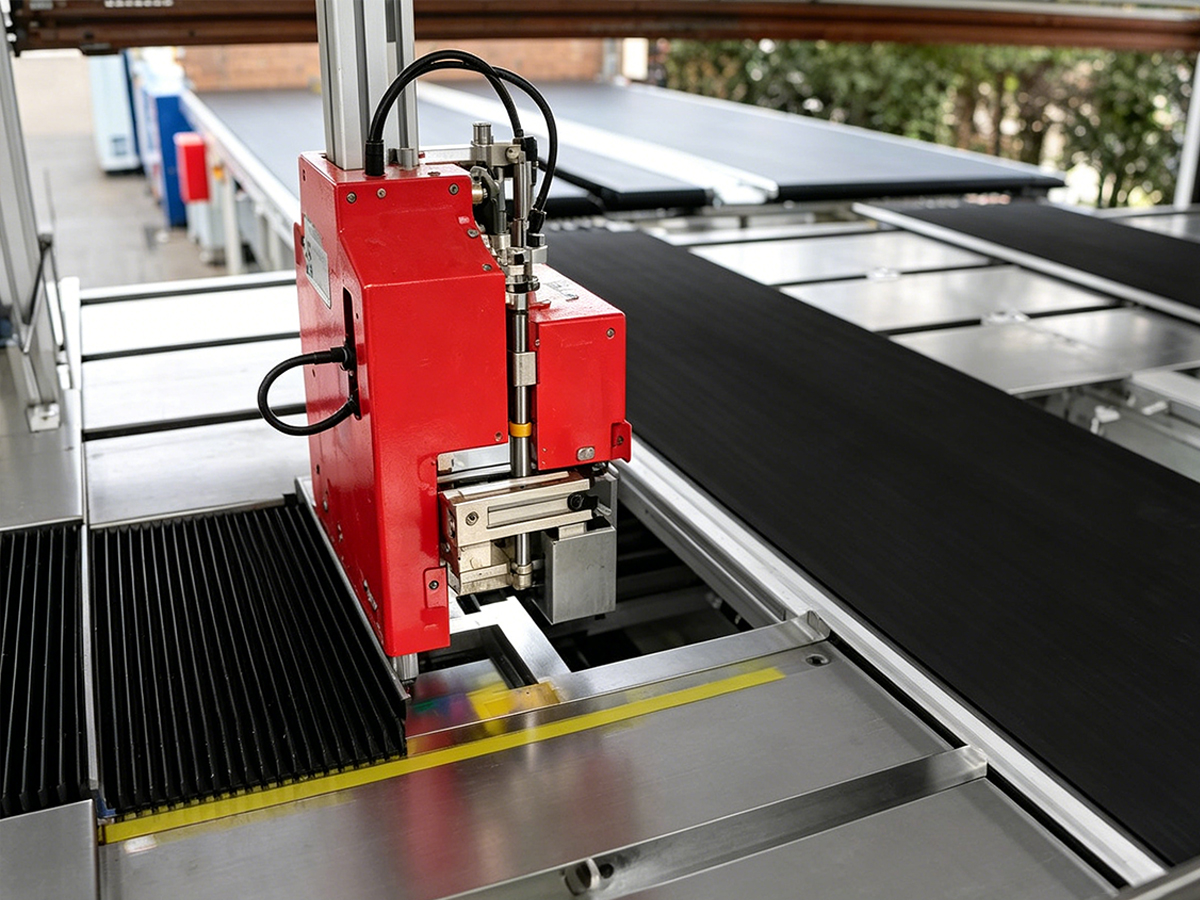

Servo Sealing and Cutting System: The horizontal sealing section uses servo control technology, ensuring uniform and stable sealing strength and a smooth, secure edge. It is compatible with various commonly used heat-shrink films.

Quick Film Change Design: Can be equipped with film holder lifting system, it significantly simplifies the film change process, reduces downtime, and ensures continuous production line operation.

Integrated Conveyor Structure: The dedicated conveyor system offers excellent adaptability, capable of packaging not only standard goods but bigger product with larger size, ex: door, window, mattress.

Intelligent Cleaning Function: Equipped with a simulated film cleaning function, it automatically handles residual film and waste, reducing manual maintenance.

High-Quality Components: The core electrical, pneumatic, and temperature control components of the entire machine are all from internationally renowned brands, resulting in a low failure rate and stable performance even during long-term continuous operation.

Temperature-Controlled Shrink Tunnel: The precisely temperature-controlled shrink chamber ensures a tight film fit to the product, effectively providing dustproof, moisture-proof, and impact-resistant protection.

Safe and Durable: The equipment features a robust structure and comprehensive protective design, balancing operational safety with equipment lifespan.

Applications: Widely applicable to the packaging of furniture, logistics, electronics, daily necessities, and various industrial parts, especially suitable for automated batch packaging of irregularly shaped goods, soft products, boxed and palletized goods, and can meet the needs of medium and large capacity production lines in different industries.

Parameter Model GH-6030AF  Model SF-15070E
Power 7 kw 59 kw
Power Supply AC 220/380V 3PH 50/60HZ AC 220/380V 3PH 50/60HZ
Cross Blade Length 1300mm
Chamber Size (L×W×H) 4000×1500×700mm
Packing Size L(unlimited), W+H≤1800mm, H≤500mm 3000×1300×500mm
Packing Speed 0–15m/min. 0–15m/min.
Working Table Height 850 ± 25mm 850 ± 25mm
Shrink Film Material PE/POF PE/POF
Max. Diameter of Film Roll 350mm /
Machine Overall Size (L×W×H) 2300×2500×2130mm 5000×1850×2150mm
Export Crate Size (L×W×H) 2400×2600×2280mm 5100×2250×2300mm
Gross / Net Weight 2250/2050kgs 2700/2550kgs
Why Kuko
Shanghai Kuko Packaging Machinery Co., Ltd.

Founded in 2004 and headquartered in Sheshan Town, Songjiang District, Shanghai, KUKO specializes in fully automatic sleeve sealing & heat shrink packaging machines, offering more than 200 models covering low-speed, medium-speed, and high-speed series to meet different industry and production capacity requirements. We provide complete sleeve sealing and heat shrink packaging solutions. Our machines ensure stable 24-hour continuous operation, support seamless integration with MES systems, and fully comply with international production standards.

To ensure product quality and efficiency, we have introduced advanced equipment, including German IPG high-precision laser cutting machines and imported high-precision servo bending machines. To support our global development, we operate modern production bases in Kunshan Zhouzhuang Industrial Park and Shanghai Sheshan Industrial Zone, with a total workshop area of 34,000 square meters, enabling large-scale and standardized production.

With over 20 years of professional experience, KUKO has been recognized as a Shanghai High-Tech Enterprise and Shanghai Specialized, Sophisticated, Unique & New Enterprise. We hold ISO9001 and EU CE certifications, and own multiple invention and utility model patents.

The company has established long-term stable cooperation with well-known enterprises worldwide, covering food, daily chemicals, electronics, logistics, pharmaceuticals, furniture, and other industries. Committed to reliable quality and professional service, we help customers improve efficiency and reduce costs, providing stable packaging equipment and technical support for global partners.
