Fully-auto Sleeve Sealer & Shrink Tunnel （Column Type)

Key Features:
Fully Automatic Production Statistics System: Equipped with an intelligent counting module, the machine records the total daily output in real time, providing a visual display of production data for easy workshop capacity calculation, scheduling management, and shipment statistics.

Seamless Integration with Front-End Production Line: The GH-6030AHO sealing and cutting unit can be directly connected to the filling production line, eliminating manual transfer and achieving closed-loop automated production from filling to grouping and wrapping.

Customizable Reversible Feed Conveyor Belt: The feeding conveyor mechanism supports left and right direction customization to flexibly match the existing production line layout of different factories, making modification and adaptation easier.

Multi-Specification Bottle Type Compatible Arrangement Mechanism: Automatically arranges square and round bottles and cans in various arrangements such as 2×3, 3×4, and 4×6, adapting to various combination packaging needs of 6 to 24 bottles.

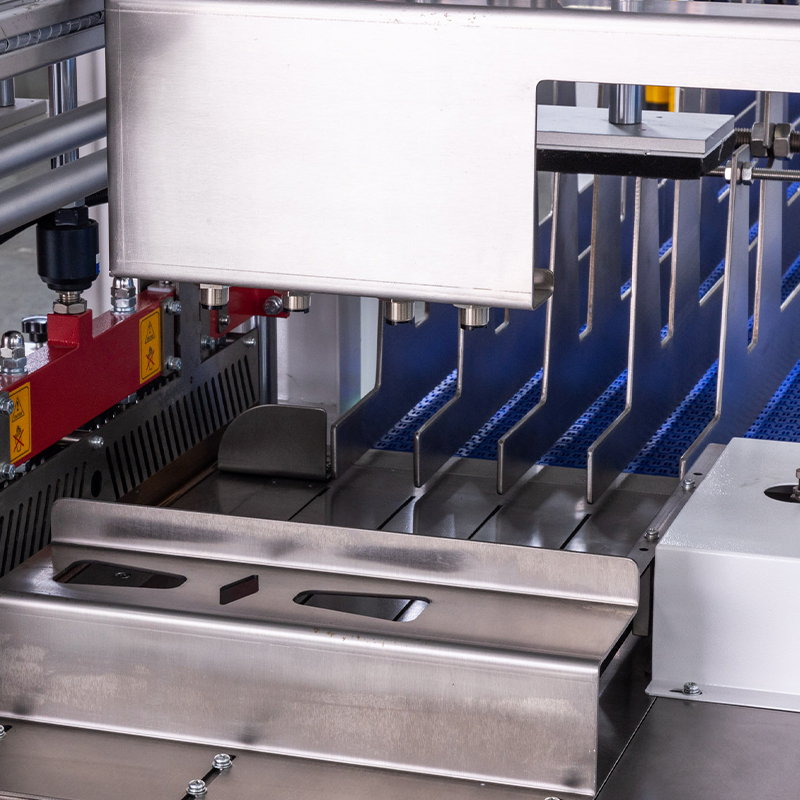

Extended Constant Temperature Cross-Cutting and Sealing System: Equipped with a 670mm extended cross-cutting blade and an imported constant temperature controller, ensuring a smooth, unbroken seal without film sticking or charring, suitable for stable processing of industrial PE shrink film.

Independent Widened Constant Temperature Shrink Tunnel SF-8050E: Ample furnace space, uniform heating with circulating hot air throughout, ensuring the film tightly adheres to the bottle body, achieving multiple protections against dust, moisture, and scratches during transportation.

Featuring a complete set of internationally leading electrical control components: The entire machine is equipped with a Siemens PLC HMI, Schneider Electric components, Autonics temperature sensor control, and Airtac pneumatic components. It includes automatic shutdown alarms for material jamming and overload, a fully enclosed protective casing, and supports 24-hour continuous mass production.

Applications: This complete set of sleeve packaging equipment is primarily designed for automated group wrapping of bottled beverages such as drinking water, juice, carbonated drinks, and canned drinks. It is widely used in large beverage bottling plants, mineral water production workshops, and wine processing lines. It can replace manual grouping and wrapping processes, improving the automation level of the entire production line. Long-term production saves on film consumables and labor costs, and it is suitable for the standardized packaging needs of large and medium-sized beverage mass production plants.
