SF-6050E Extended, widened, and heightened heat shrink packaging machine

Key Features

1. Extended, Widened, and Heightened Extra-Large Internal Cavity with Dual-Circulation Hot Air Structure: The SF-6050E heat shrink tunnel adopts an extended, widened, and heightened furnace cavity design, with internal passage dimensions of 1872×600×500mm and overall external dimensions of 2800×950×1755mm. Compared with conventional small and medium-sized heat shrink tunnels, it can accommodate large items with a width of less than 600mm and a height of 500mm, multi-layer stacked goods, and small palletized materials. The equipment is equipped with two imported SURFON high-temperature circulating fans, forming a three-dimensional convection air duct, ensuring 360° circulation of hot air inside the furnace without dead angles. This prevents defects such as whitening of the film, loose shrinkage, wrinkling, and bubbling from occurring on the edges and bottom of large items. The machine has a rated power of 18kW, a temperature control range of 0–300℃, and a fully independently stepless adjustable conveying speed of 0–15m/min. It is compatible with both thick and thin PE heat-shrink film. The optimized short-cavity air duct design improves heat energy recycling efficiency, resulting in lower energy consumption for the same production capacity. Long-term mass production effectively reduces electricity costs. The machine weighs 810kg, with a thickened unibody sheet metal frame that prevents vibration during long-term heavy-duty continuous operation.

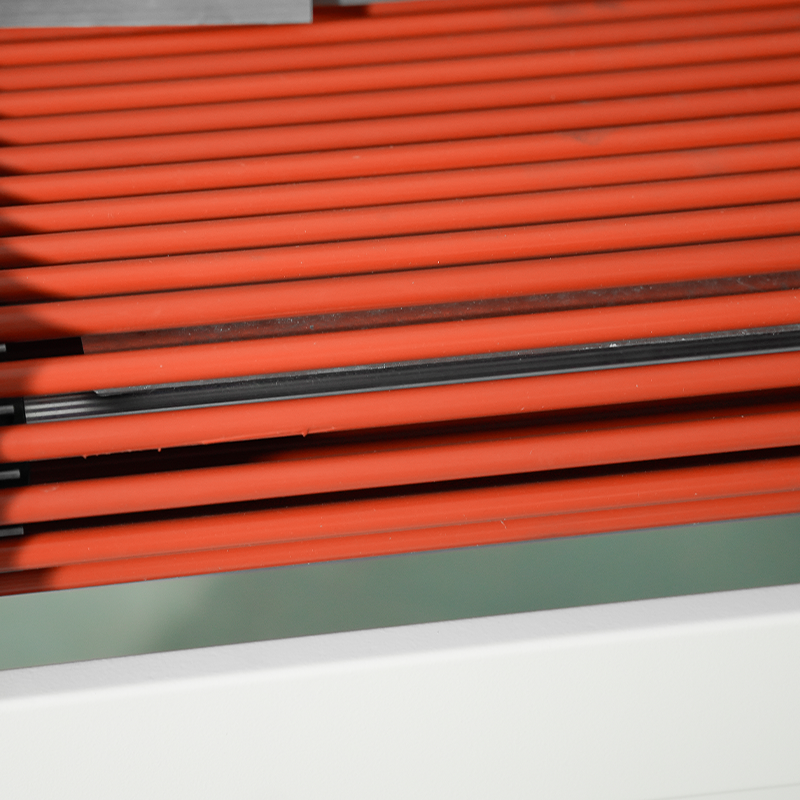

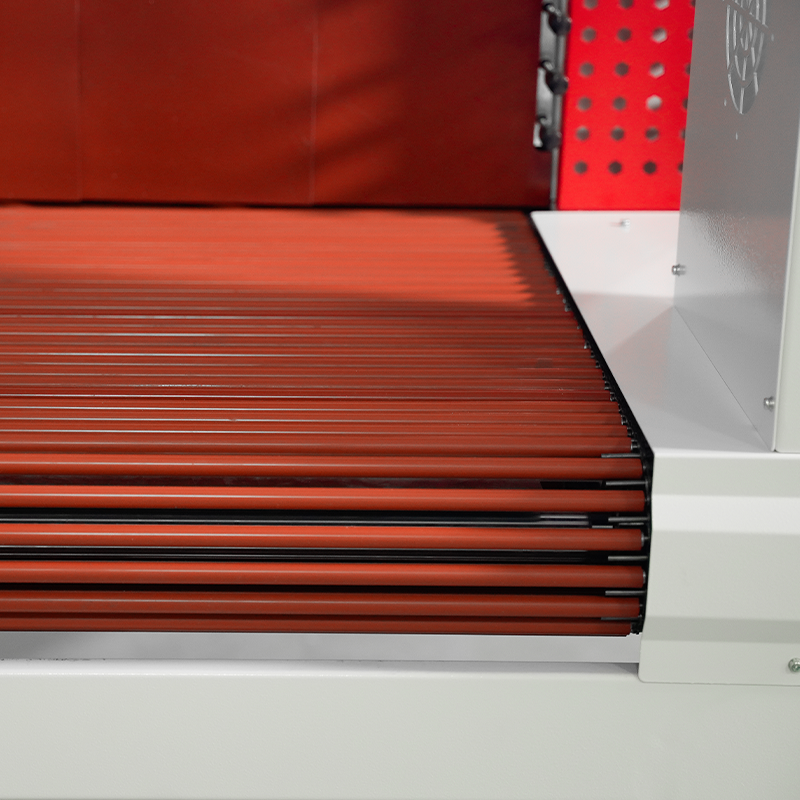

2. Heavy-duty solid steel bar conveying system, supporting upgrades to dense rollers to accommodate workpieces of various sizes: The conveyor uses a thickened solid steel chain structure, with the steel bars wrapped in imported thickened high-temperature resistant silicone tubing. This provides high temperature and friction resistance, preventing deformation and collapse when transporting heavy sheet metal and full-box goods, while also avoiding scratches on printed surfaces and smooth paint finishes. For small parts and mini gift boxes that are prone to falling, a densely arranged steel roller accessory can be upgraded to reduce the gap between rollers, allowing large and small items to share a single machine. The workbench conforms to the industry standard height of 820±50mm, allowing seamless integration with fully automatic side sealing machines and sleeve-type sealing and cutting main units without requiring production line modifications. The machine base is equipped with omnidirectional sliding feet and heavy-duty adjustable support feet, enabling flexible relocation and precise leveling in large factories, making installation and commissioning simple and convenient.

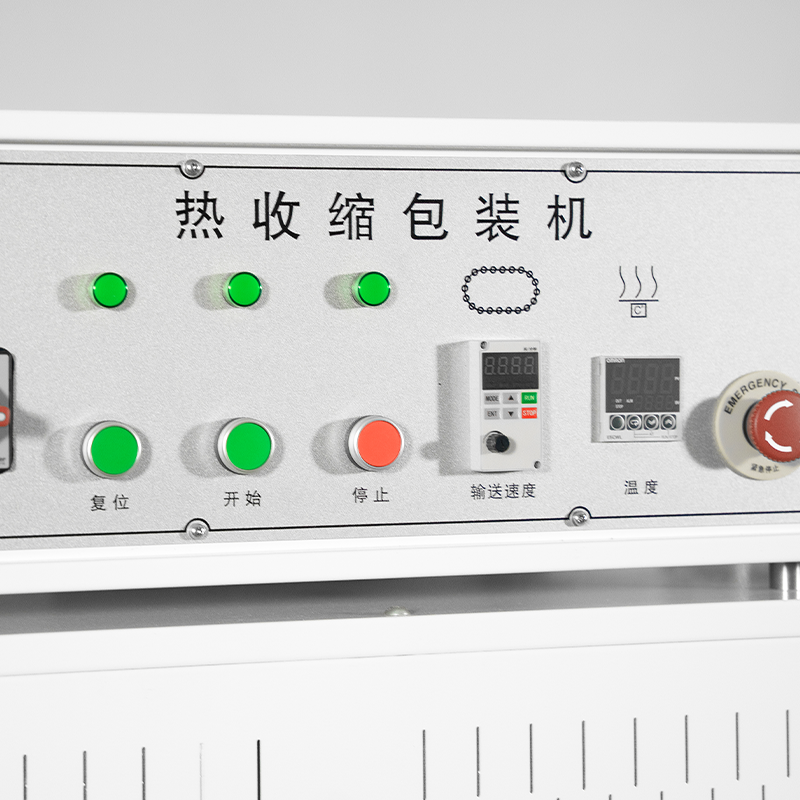

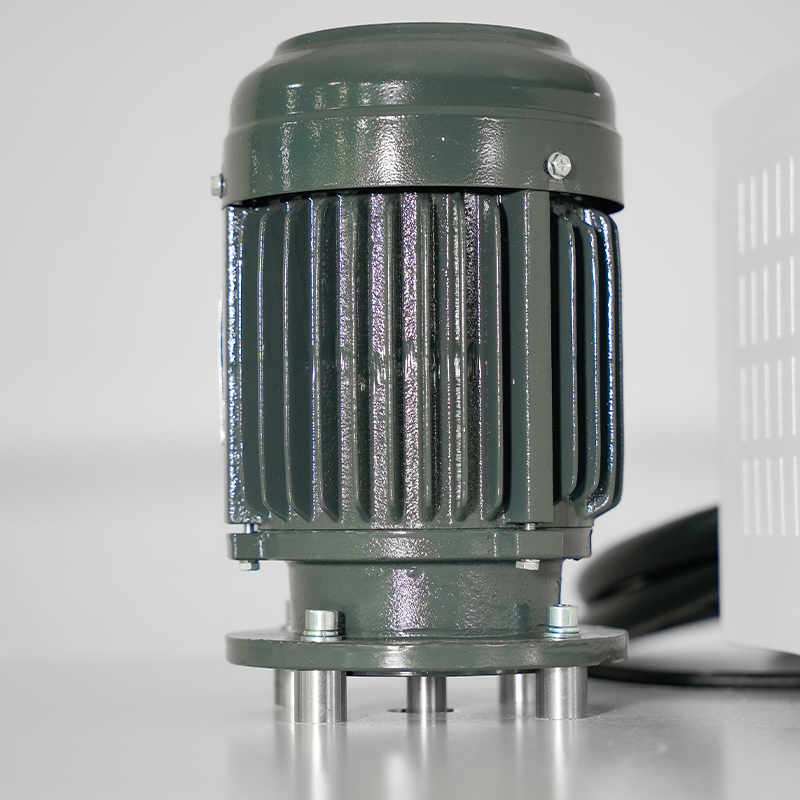

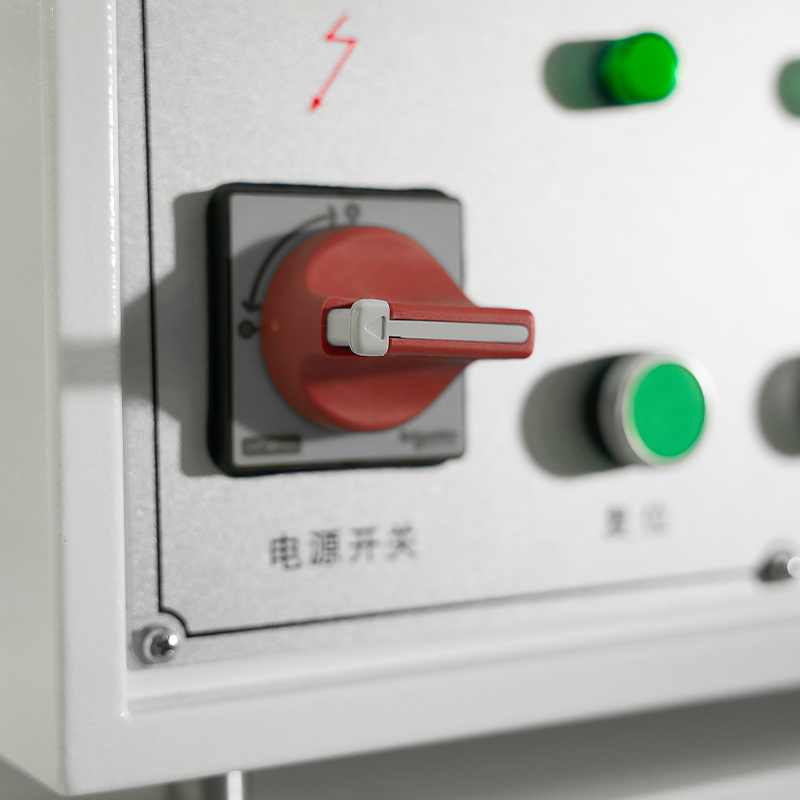

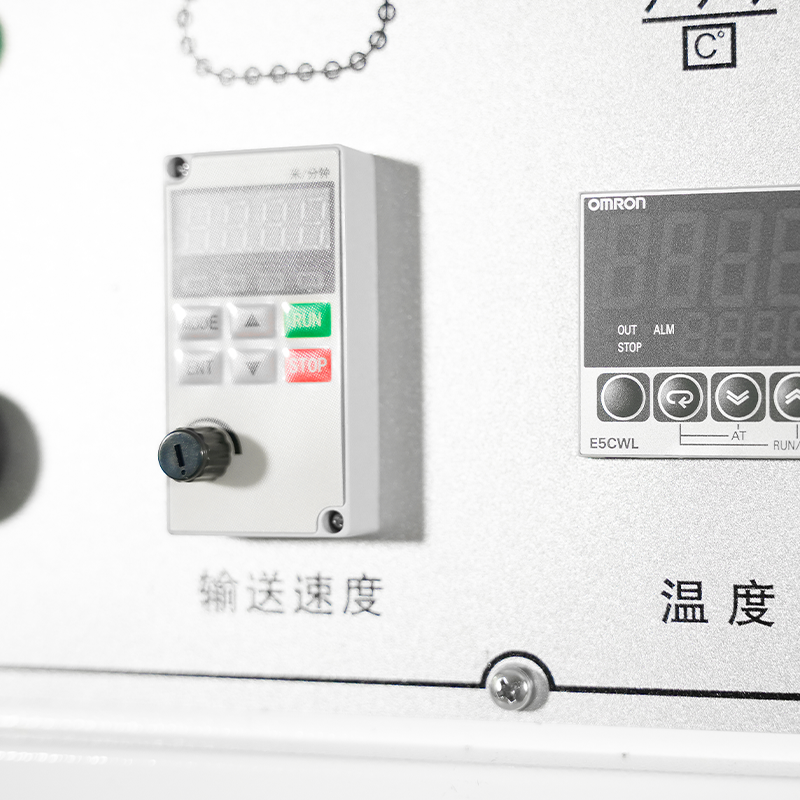

3. A complete set of internationally renowned brand electrical control components ensures precise and stable temperature and speed control: All electrical components are selected from globally recognized brands, guaranteeing long-term stable operation. French Schneider frequency converters, AC contactors, and thermal overload relays provide stepless speed regulation, ensuring smooth start-up and stop without impact. Japanese Ormon high-precision temperature controllers collect furnace temperature data in real time, with minimal temperature control error. Taiwanese GPG conveyor geared motors and SURFON circulating fans provide continuous and stable power output, coupled with Taiwanese Yangming solid-state relays for stable temperature control. The equipment is compatible with AC220V/380V three-phase 50/60Hz globally, making it suitable for both domestic and international factory power grids. The control panel is centrally located on the top of the equipment, with clearly marked emergency stop, temperature, and speed adjustment buttons, allowing even employees with no prior experience to quickly learn and operate it proficiently.

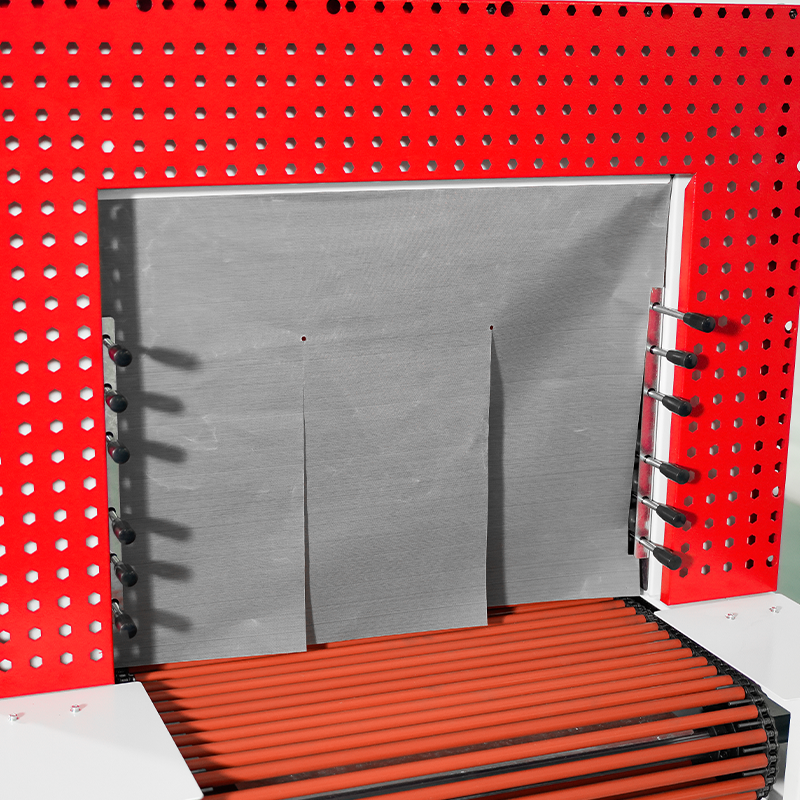

4. Fully enclosed, insulated, and safe furnace body with multiple protections to reduce the risk of malfunction: The furnace body is filled with high-density insulation cotton, and the inlet and outlet are equipped with thickened, high-temperature resistant, heat-insulating curtains to lock in the high temperature inside the furnace, reducing heat loss and lowering the surface temperature of the machine casing to avoid the risk of burns. Ventilation windows on both sides of the machine body balance the high temperature inside the furnace with external heat dissipation, delaying the aging of sheet metal and electrical components. The equipment features triple safety interlock protection: over-temperature alarm, motor overload, and emergency stop. In case of abnormal operating conditions, it automatically cuts off the heating and power supply, eliminating the risk of short circuits and dry burning. The modular assembly allows for individual disassembly of the fan, heating element, and conveyor rollers, shortening the time required for daily dust removal, parts replacement, and troubleshooting, significantly reducing production line downtime losses.

5. Flexible customization services with universal consumables, comprehensive after-sales support: The equipment is natively compatible with PE heat shrink film, with a wide range of market consumable procurement channels and low procurement costs. After simple adjustments, it can also be used with PVC film. The manufacturer supports on-demand replacement of internal roller spacing, electrical control components, and heating power, and can perform simple non-standard modifications according to customer product specifications. The whole machine comes with a one-year warranty, and original parts damaged by non-human factors are replaced free of charge; only the customer needs to bear the logistics costs. After the warranty period, various spare parts will continue to be supplied at factory prices, and lifetime remote video and online text technical consultation will be provided to quickly resolve production line operation failures.

Application Scope: The SF-6050E widened, heightened, and lengthened hot air shrink tunnel is a back-end heat shrink equipment for large and medium-sized production lines. It must be assembled with various fully automatic and semi-automatic sealing and cutting machines to form a complete automated packaging production line, mainly for heat shrinking large-sized regular goods, multi-layer combined goods, and small palletized materials.

Widely adaptable to various industries and large-item packaging scenarios: Food industry: full cases of beverages, grains and oils, gift sets; Daily chemical industry: large personal care sets, full cases of cosmetic gift sets; Pharmaceutical industry: full cases of medicine boxes, medical consumables packaging; Building materials industry: wood flooring, decorative panels, small door and window accessories; Industrial field: automotive parts, large hardware kits, electrical housings; Small furniture items, large plastic items, and full cases of warehouse goods can all be stably processed; Supports both palletized and palletless packaging modes; Single large items can be individually wrapped, and multiple items can be bundled together to achieve a flat and tight heat-shrink effect. After the film completely wraps the goods, it provides protection against dust, moisture, rust, and damage during transportation. The transparent film also enhances the aesthetics of goods storage and supermarket displays. The widened and heightened cavity is suitable for high-capacity production scenarios such as large and medium-sized food processing plants, building material production lines, auto parts manufacturing workshops, large e-commerce warehouses, and furniture processing plants, while meeting the needs of domestic mass production and export factories.
