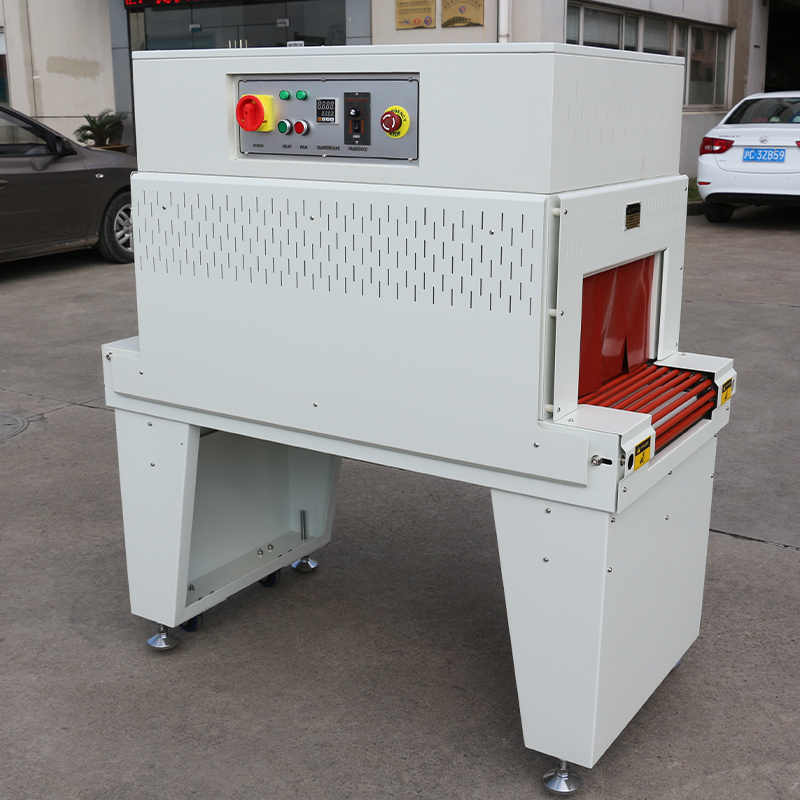

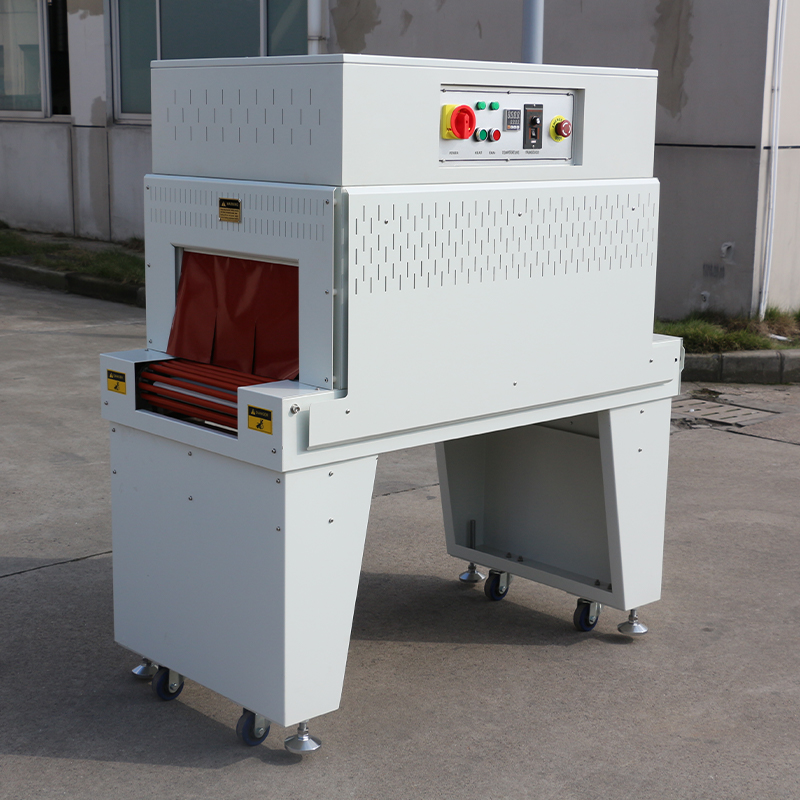

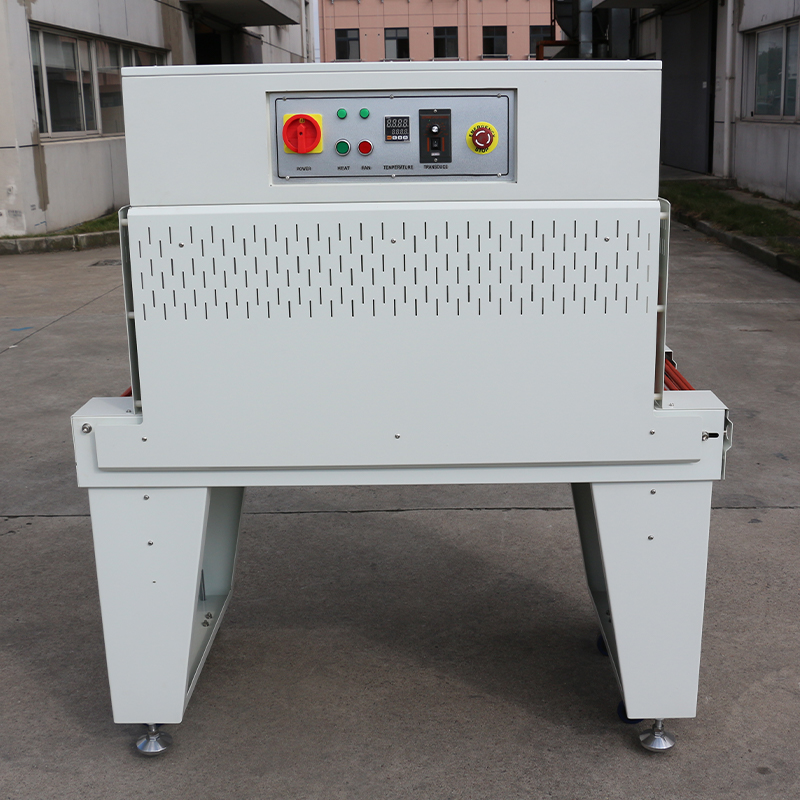

SF-4525 Long-lasting and durable heat shrink packaging machine

Key Features

1. Long-lasting and durable heating and automatic cooling system: The furnace body is equipped with a one-piece molded 304 stainless steel heating element, which is resistant to high temperatures and corrosion. Combined with a built-in automatic cooling circuit, the equipment cools down rapidly after shutdown, significantly extending the service life of the heating elements and the entire machine to more than three times that of ordinary tunnels. Temperature and conveying speed are independently adjustable steplessly, with a conveying range of 0-15m/min to flexibly match different film thicknesses. Even heat exchange within the furnace ensures tight adhesion of the finished film, achieving stable dustproof and moisture-proof packaging protection.

2. Universal material compatibility design: Compatible with PVC, POF, and PET, three mainstream heat shrink films on the market. Consumables can be switched without changing internal parts, adapting to different industry packaging standards. This provides a wider range of film procurement options and allows for on-demand control of packaging consumable costs.

3. High-power convection hot air and anti-stick conveyor structure, equipped with a high-flow circulating fan and a three-dimensional convection air duct inside the furnace, eliminating localized low-temperature dead zones; the conveyor rollers are made of 45# solid steel, with a thickened high-temperature resistant silicone sleeve, providing strong load-bearing capacity and preventing collapse during the conveying of heavy goods, while also isolating the film from direct high-temperature contact, eliminating film burning and damage problems, and significantly reducing the rate of packaged defective products.

4. Flexible and lightweight machine structure, with a net weight of only 240kg. Equipped with omnidirectional casters and adjustable support pads at the bottom, it can be freely moved and leveled. It can be used in conjunction with fully automatic side sealing machines and semi-automatic cuff sealing machines to form a complete production line, or used independently with manual sealing and cutting equipment, adaptable to production workshops with different budgets and levels of automation; the furnace cavity dimensions are 1000×450×250mm, and the standard worktable height is 820±50mm, seamlessly connecting to most sealing and cutting main units on the market.

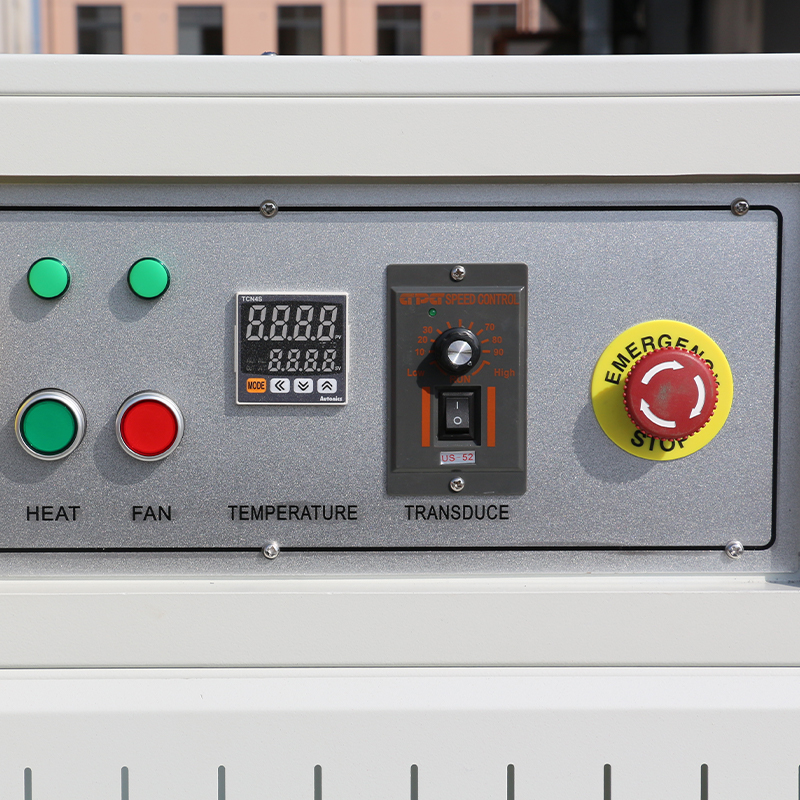

5. Standardized international brand electrical control components: the core circulating fan is from SURFON (Taiwan), and the conveyor motor is from GPG (Taiwan); temperature control, relays, and switching components are from Omron (Japan), Siemens (Germany), and Schneider Electric (France), respectively; solid-state relays are from Yangming (Taiwan); and the frequency conversion system is stable and controllable. The entire unit uses 380V three-phase power supply, equipped with multiple overload, high-temperature, and emergency stop safety protections. It comes standard with a one-year warranty, and free replacement of parts for non-human-caused damage. Customization of furnace body dimensions is also supported to accommodate products of special sizes.

Application Scope: The SF-4525 medium-sized standard heat shrink tunnel is a general-purpose heat shrink equipment that needs to be used in combination with various sealing and cutting main units. It is suitable for small to medium-sized, regular-sized goods with dimensions less than 450×250mm. Widely used in production lines for industries such as snack foods, bottled beverages, gift boxes, cosmetics, small medicine boxes, 3C digital accessories, stationery sets, small hardware parts, small plastic parts, and cultural and creative gifts; capable of single-item independent wrapping and multi-item bundled packaging. POF/PET film packaging produces transparent and aesthetically pleasing finished products, while PVC film is suitable for low-cost bulk packaging. The compact and mobile design is suitable for continuous mass production on small and medium-sized automated production lines, as well as intermittent packaging operations in stores and small processing plants. The film completely wraps the goods, preventing damage from dust, water stains, and external impacts during warehousing and logistics, thus enhancing the product's shelf display quality.
