Masking Tapes Shrink Wrapper

Key Features:

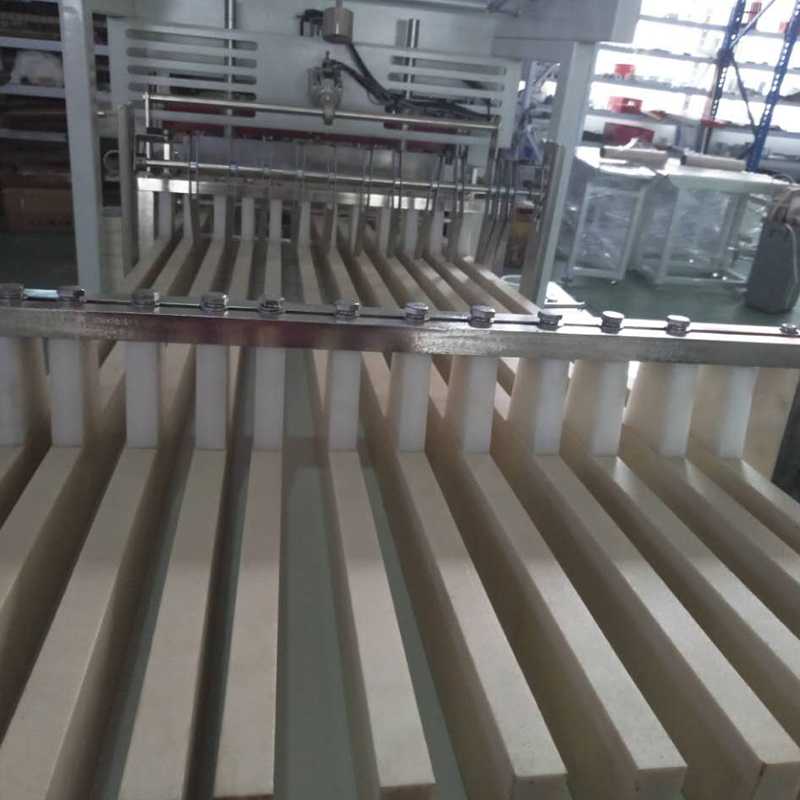

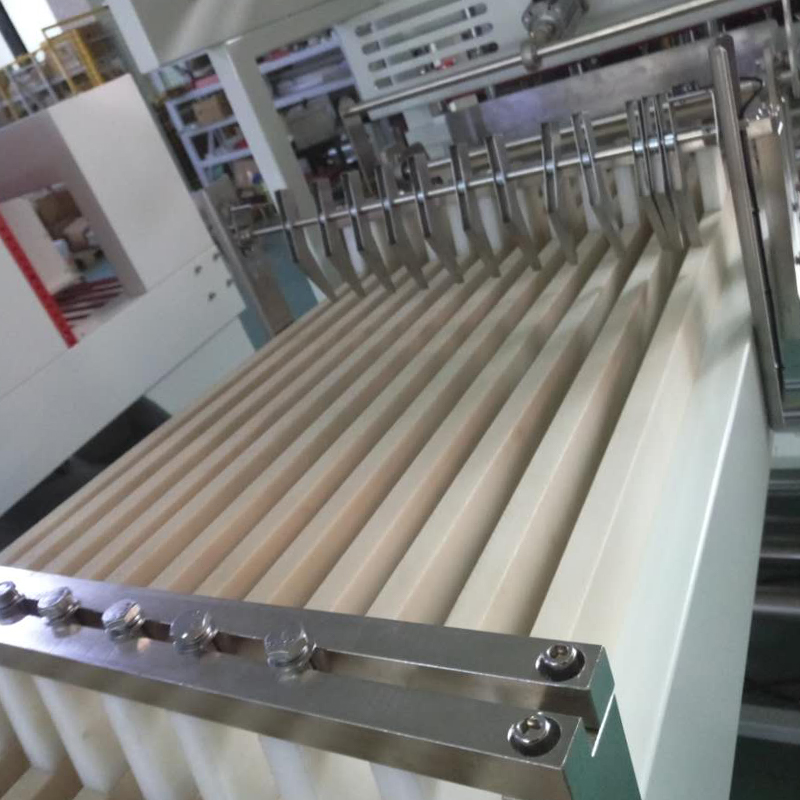

• Exclusive packaging structure for accordion-stacked masking tape: The machine’s mechanism is specifically designed for the accordion-style stacking of masking tape, supporting multi-roll group packaging for various tape widths. After heat-shrink sealing, this effectively prevents the masking tape rolls from sticking together, ensuring product quality upon shipment. It supports tape widths ranging from 24 to 50 mm and allows for flexible packaging configurations of 3 to 10 rolls per package.
• Seamless Switching Between Two Loading Modes: Supports manual loading, suitable for small-batch, high-order-variety flexible production; also features a reserved interface for direct integration with upstream production lines to enable fully automated feeding, achieving unmanned operation throughout the entire process—including feeding, wrapping, sealing and cutting, and heat shrinking—to meet the high-volume mass production needs of tape factories.

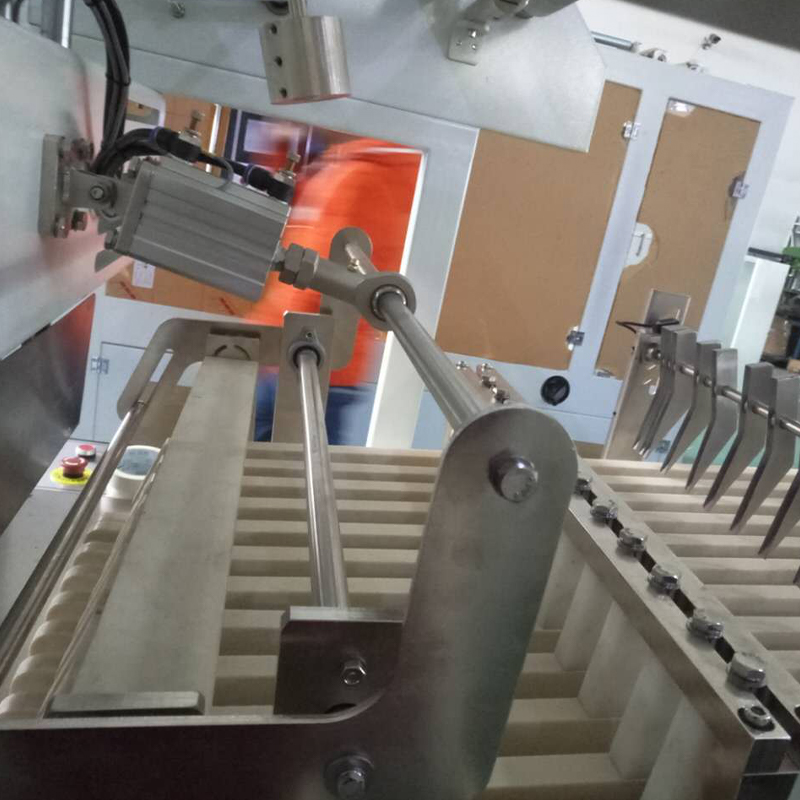

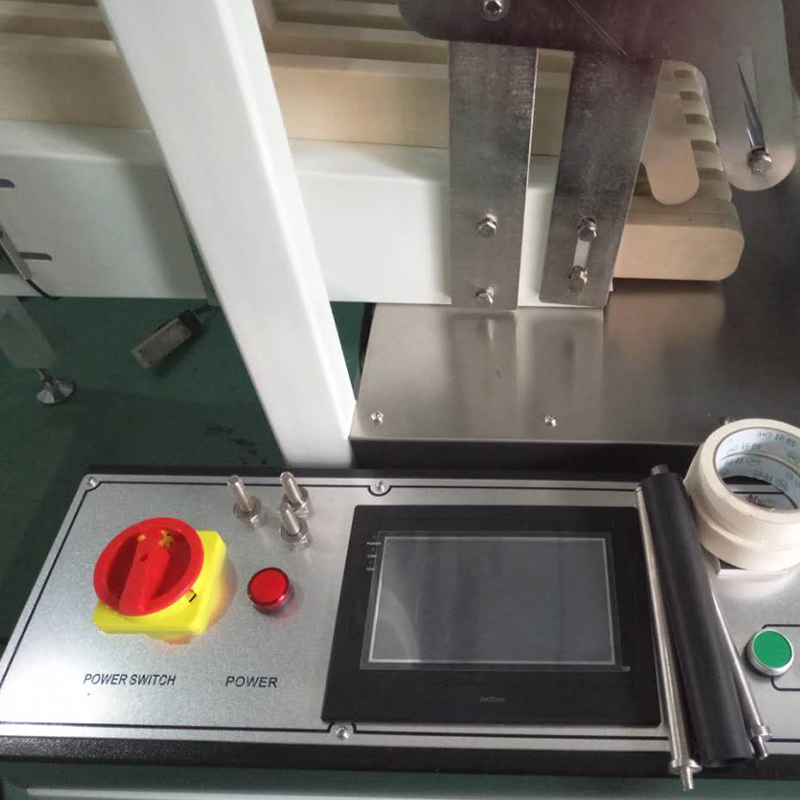

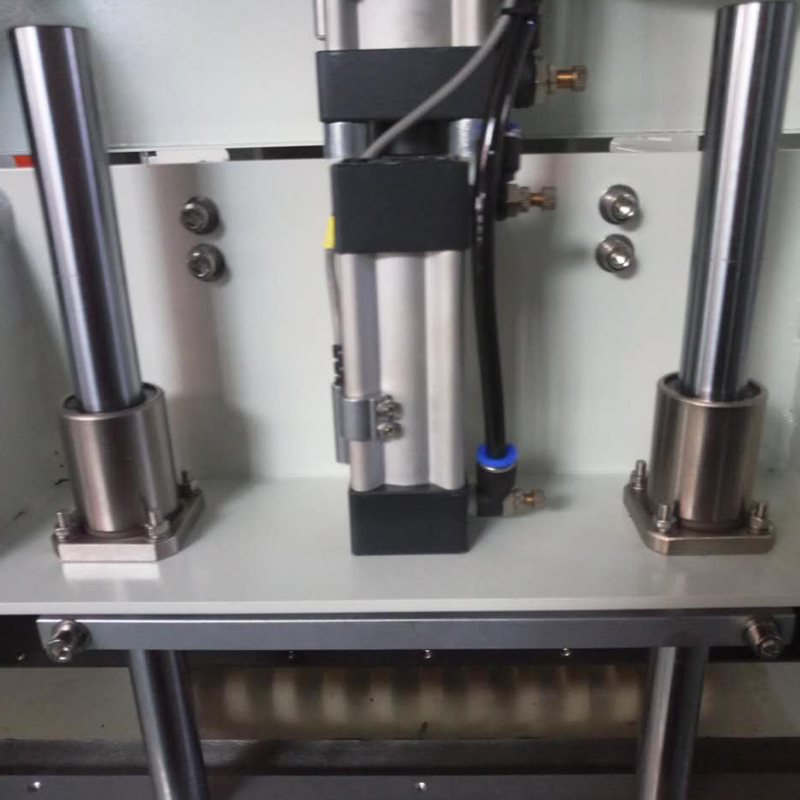

• Stable and Reliable Pneumatic Sealing and Cutting System: The entire system features coordinated mechanical, electrical, and pneumatic operation and requires an external air supply of 5–8 bar. The sealing and cutting blades are heat-resistant and anti-adhesive, ensuring strong and stable seals while minimizing defects such as loose seals and film tears during high-speed production. Core components—including sensors, cylinders, PLCs, touchscreens, and temperature control elements—are sourced from leading international brands, ensuring low failure rates during prolonged continuous operation.
• Hot-Air Circulation Shrink Tunnel: Equipped with a dedicated hot-air shrink oven, the tunnel ensures uniform hot-air circulation inside the chamber. This allows for thorough heating of the PE shrink film, ensuring even shrinkage even at the edges and corners of the tape rolls, resulting in a smooth and snug wrap. The conveyor speed is independently adjustable to accommodate different film thicknesses and production rhythms.

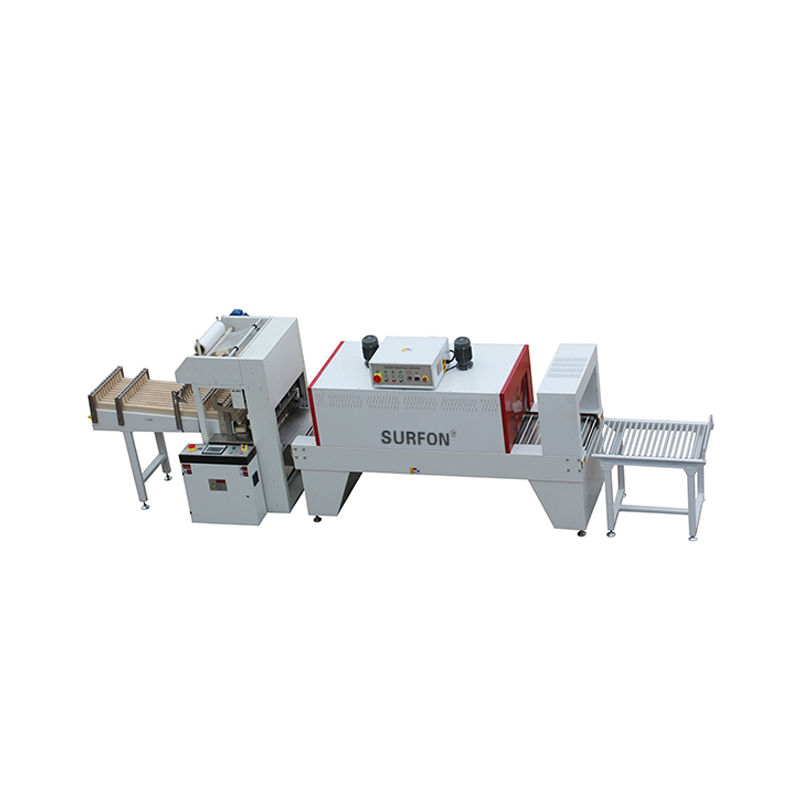

• Compact Straight-Through Machine Layout: Featuring a straight-through material flow path, the equipment has a compact footprint. The standardized workbench height facilitates integration into existing factory assembly lines without requiring major modifications to the workshop layout. The machine is fully enclosed, with moving parts isolated and protected to ensure operator safety during production.
• Flexible Adaptability to Multiple Tape Specifications: The equipment can be quickly adjusted to accommodate the production of bundles of mainstream masking tape and protective tape specifications available on the market. With simple parameter adjustments, the number of rolls per bundle can be switched to meet the production needs of multiple SKU tape products.

Applications:

Primarily used for accordion-style group heat-shrink packaging of masking tape, it is widely adopted in tape manufacturing plants. The packaging prevents tape rolls from sticking to one another while providing protection against dust and moisture, facilitating the boxing, warehousing, and logistics shipment of finished tape products. In addition to masking tape, it can also be adapted for the group packaging of certain similar cylindrical adhesive products, accommodating both small-batch production on a single machine and large-scale mass production on assembly lines.
